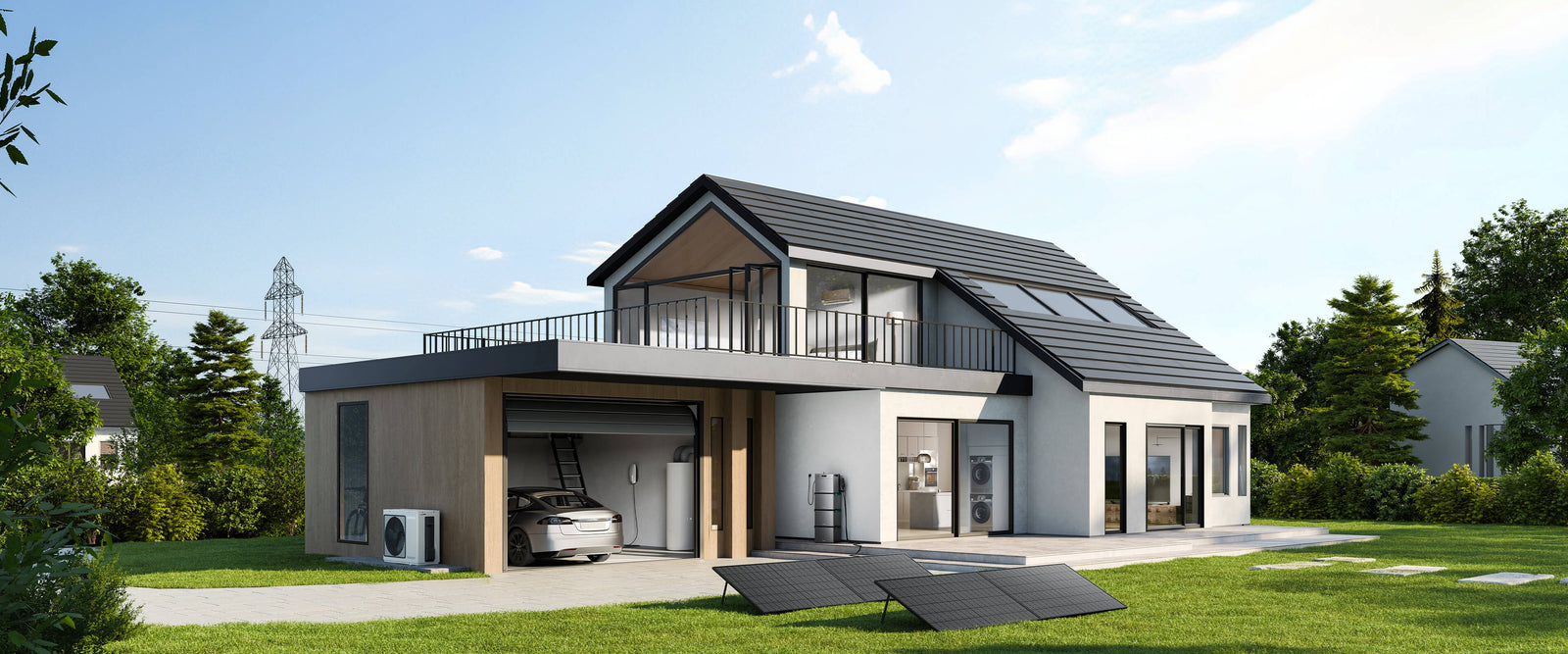

Zendure SolarFlow 2400 Pro: The Ultimate Product Guide

Welcome to the SolarFlow 2400 Pro product guide. This guide is designed to provide a clear, detailed breakdown of how this AI-driven 2400W bi-directional AC balcony storage system works, its hardware components, smart scheduling logic, and the significant financial value it brings to your home.

What is the Zendure SolarFlow 2400 Pro?

“Balcony Solar Storage” is a lightweight photovoltaic solution designed specifically for apartments or detached houses. Unlike traditional rooftop solar, which requires extensive and costly electrical modifications, the Zendure SolarFlow 2400 Pro features a “Plug and Play” design.

This allows users to establish a small-scale home energy system using limited space on a balcony or in a garden. It does not just generate power from the sun; it uses a high-capacity battery to store excess energy—unused by household loads during the day—for use at night, significantly reducing your reliance on the grid and cutting energy bills.

Core Hardware Components of SolarFlow 2400 Pro

A complete SolarFlow 2400 Pro system operates like a precision-engineered "power factory," consisting of the following core components:

1. Main Logic Board

This is the heart of the system, integrating a 4 MPPT controller, a AC-DC inverter module, and a DC-DC conversion module. It is responsible for tracking the maximum power from a 3000W PV input and managing the high-efficiency bi-directional conversion between AC and DC power while regulating internal voltage.

2. Battery Management System (BMS)

The system features the ZenGuard™ Dual BMS architecture, which combines independent internal monitoring with cloud-based collaborative analysis. It provides real-time monitoring of voltage, current, and temperature, while executing low-temperature self-heating and anti-over-discharge strategies to maintain battery health and extend its lifespan.

3. Lithium Iron Phosphate (LiFePO4) Battery Unit

Utilising industrial-grade LiFePO4 cells, this unit serves as the system's energy storage core. It provides a base capacity of 2400Wh (2.4kWh) and is responsible for the stable storage and release of electricity.

4. High-Strength Metal Enclosure

The system is housed in a precision-cast aluminium alloy casing with an IP65 protection rating. This provides robust physical protection and a completely waterproof and dustproof seal for the internal components, while the high thermal conductivity of the metal allows for efficient passive heat dissipation.

3. How Does SolarFlow 2400 Pro Work? (Energy Flow Logic)

Understanding how electricity moves through the system will help you better plan your household energy consumption.

Day Mode: High-Efficiency Capture and Storage

• Capturing Sunshine: With 4 MPPT, the system can connect four sets of panels in different orientations (supporting up to 8 panels in total) without interference. It supports a total solar input of up to 3000W. Crucially, it features a 14V low-voltage startup, meaning it begins collecting energy in the early morning, late evening, or on overcast days when other micro-inverters have not yet woken up.
• Priority Supply: Generated electricity is first supplied to running household appliances, such as your fridge or computer.
• Storing Excess: If generation exceeds household consumption, the surplus electricity automatically flows into the battery unit rather than being wasted by flowing back into the grid.

The 2400W AC input Advantage: SolarFlow 2400 Pro supports up to 2400W AC input. During periods of peak sunlight, this high power capacity ensures that even large amounts of surplus energy can be stored rapidly, providing more power for your use at night.

PS: The Solarflow 2400 Pro can be used with your existing balcony power station, supporting up to 1800W AC coupling input.

Night/Peak Mode: Automatic Release

When the sun sets or household demand spikes, the SolarFlow 2400 Pro automatically identifies the need and draws power from the battery. The 2400W AC output provides significant benefits:

• Covering Peak Demand: During the typical evening peak around 6 pm, it can power multiple appliances simultaneously, such as an oven, TV, washing machine, and electric heater.
• Heavy Loads: The 2400W output can supplement power for medium-to-heavy load devices, such as small heat pumps.

Why 2400W Matters: Many competitors offer high charging power but limited output (often only around 1200W). This means that when you use multiple appliances at night, a lower-power system cannot keep up, forcing you to buy expensive electricity from the grid. The SolarFlow 2400 Pro significantly reduces or even eliminates this reliance.

AC Charging Mode

For users with dynamic or Time-of-Use (TOU) electricity tariffs, the system uses AI algorithms to access real-time pricing information:

• Off-Peak Periods: When electricity prices are low (e.g., overnight), the system can draw low-cost power directly from the grid to fill the battery.
• Peak Periods: During expensive periods, the system prioritises releasing this low-cost stored energy to power your home.

Flexible Expansion: 2.4kWh to 16.8kWh

The system includes a base unit with 2.4kWh, which can be expanded like building blocks.

• Stackable Design: You can stack up to five additional AB3000L batteries (2.88kWh each) beneath the main unit.
• Capacity Range: Expanding from 2.4kWh to 16.8kWh allows a household to sustain its core appliances for 1–2 days with proper load management.

2400VA Off-Grid Output: Your Emergency Haven

In the event of a power cut, the SolarFlow 2400 Pro detects the failure and switches to battery power within 15 milliseconds. Through a dedicated off-grid socket, it provides up to 2400VA of output, ensuring your fridge, Wi-Fi, essential lighting, or medical devices keep running.

Note: In grid-tied mode, the off-grid port output can scale up to 3200W to cover higher power demands.

ZenGuard™ Safety System

Safety is non-negotiable for home storage. The ZenGuard system provides three layers of protection:

• Dual BMS (Double Insurance): The system monitors voltage, current, and temperature locally and syncs with the cloud for double-layered checks against potential risks.
• Self-Heating Technology: Unlike traditional batteries that cannot charge below freezing, this system includes a heating module. In extreme winter conditions, it uses AC+PV charging and smart AC wake-up to warm the battery, ensuring it remains functional and healthy even below 0°C.
• Aerosol Fire Extinguisher: If the system detects a serious anomaly and internal temperatures reach approximately 170°C, an aerosol extinguisher activates automatically. It releases a cooling and suppressing mist to contain fire without leaving harmful residues.

RJ45 Port for Stable Connection

To solve the issue of unstable home Wi-Fi, the SolarFlow 2400 Pro includes an RJ45 port.

You can establish a physical connection to smart monitoring devices like the Zendure 3CT-S or 1CT-S, ensuring continuous, stable communication and preventing energy scheduling delays caused by signal drops.

HEMS: Your Smart Energy Butler

The SolarFlow 2400 Pro is equipped with a powerful HEMS (Home Energy Management System), integrating state-of-the-art energy technology into your household. By seamlessly connecting and optimising every link in the energy chain—from generation and storage to consumption—it provides precision management that significantly reduces electricity bills, boosts energy efficiency, and creates a smart energy ecosystem for sustainable living.

Key Features of the HEMS:

• Tailored Energy Modes: We provide personalised energy management modes (Zenki, Auto, and Expert) to suit various needs. Whether you are a seasoned energy expert or a typical user focused on daily consumption, there is a mode perfectly suited to your lifestyle.
• ZENKI AI Optimisation: Zenki mode’s artificial intelligence optimises energy consumption based on real-time electricity prices, weather forecasts, and usage patterns. By prioritising clean energy (low-cost grid power and solar), Zenki can boost your electricity savings by approximately 73%.
• Extensive Provider Integration: The system is connected to power data from over 840 major electricity providers across 32 European markets, including EDF France. It also supports basic data retrieval. By connecting to European power exchanges such as GME and OMIE, you can select your specific tariff, allowing the system to automatically receive real-time pricing. This enables the battery to charge at lower prices, maximising cost-efficiency. You can also monitor real-time usage and expenditure data via the app.
• Heat Pump and EV Compatibility: Create a highly efficient energy ecosystem with support for over 5,000 heat pump models and various electric vehicles. You can use surplus solar energy or low-cost electricity to pre-heat your heat pump, significantly slashing heating costs. Furthermore, you can charge your EV (such as a Tesla) economically and sustainably, ensuring the lowest possible cost and carbon footprint.
• Smart Device Integration: If you wish to integrate energy data with HEMS 2.0 without replacing your existing kit, Zendure is fully compatible with various smart accessories from Shelly, EverHome, and HomeWizard. This allows you to utilise your existing smart home setup without additional investment, reducing the overall cost of your Zendure system.
• MQTT Support: The system supports the MQTT protocol, enabling integration with platforms like Home Assistant and Homey. This allows for a bespoke smart home experience where you can freely customise energy plans to enhance the comfort and convenience of your daily life.
• Multi-Property Management: Under a single ID, you can configure independent HEMS for multiple residences. Each HEMS system can manage up to 6 devices, meeting the demands of managing energy scheduling across different properties and loads simultaneously.
• Comprehensive Data Management: The system provides a wealth of real-time data, including PV generation, battery charge/discharge rates, household appliance consumption, and grid purchases. You can also view energy reports across different periods (day, week, month, or year) to understand your energy patterns and see your contribution to global environmental sustainability.

Technical Specifications

Summary

If you are looking for the ultimate way to capture sunshine and enjoy high-power usage freedom, the SolarFlow 2400 Pro is the most powerful and versatile AI-driven flagship balcony storage solution on the market. It doesn't just maximise your solar self-consumption; it uses industrial-grade safety and AI scheduling to significantly cut your energy bills while providing 24/7 power assurance.

Configure your SolarFlow 2400 Pro today and start your journey towards a smarter, more sustainable, and cost-efficient energy future!
